Carburetors



needle valves


Nº 1.-  Carburetor for F2B engines

This carburetor is suitable for Stalker and all of other types of big F2B aerobatics engines. Diameter is 4 mm. Minimum fixing width is 16 mm and maximum is 19 mm

Nº 2.-  Carburetor for diesel combat or sport

Standard tunning carburetor  adaptable to any  type of  engines.  Comes with gland nut for fixing needle. 4 mm diameter. It's ideal for Combat diesel engines. Diameter is 4 mm. Minimum fixing width is 11,6 mm and maximum is 13 mm. Fits to all Parra engines.

Nº 3.- Carburetor for F2D combat or sport

This is a fine tunning carburetor  as standard design but without wire and bigger knob for use in combat models. Comes with O-ring for perfect sealing. 4 mm diameter.  Diameter is 4 mm. Minimum fixing width is 11 mm and maximum is 13 mm. Fits to all Parra engines and most of engines.

Nº 4.- Carburetor for Team Racing or Sport flying

Fine tunning carburetor with fixing nut,  adaptable to any  type of  engines.  Comes with O-ring for perfect sealing. You can bend the wire to suit  you needs. 4 mm diameter. Fits to all Parra engines. Minimum fixing width is 11 mm and maximum is 13 mm.

Nº 5.- Carburetor for Team racing

This is a fine tunning carburetor as standard design but  smaller diameter fuel intake  glans and narrow needle to adapt engine  to cowled Team Racing models . Also has a slot to facilitate setting of NVA on inverted engine . Comes with O-ring for perfect sealing. 4 mm diameter. Fits to all Parra engines. Minimum fixing width is 11 mm and maximum is 13 mm

Nº 6.- Carburetor for 1,5 - 2,5 cc Combat or Sport (curved)

Fine tunning carburetor with fixing nut,  adaptable to any  type of  engines.  Comes with neoprene tube for sealing and curved intake.  4 mm diameter. Minimum fixing width is 11 mm and maximum is 13 mm. Fits to all Parra engines.

Nº 7.- Carburetor for 1,5 - 2,5 cc Combat or Sport (straight)

Fine tunning carburetor with fixing nut,  adaptable to any  type of  engines.  Comes with neoprene tube for sealing and straight intake  4 mm diameter. Minimum fixing width is 11 mm and maximum is 13 mm. Fits to all Parra engines.

Nº 8.- Carburetor for F2D combat STD

This is a usual NVA used for all F2D combat engines. For pressure installation to crankcase.

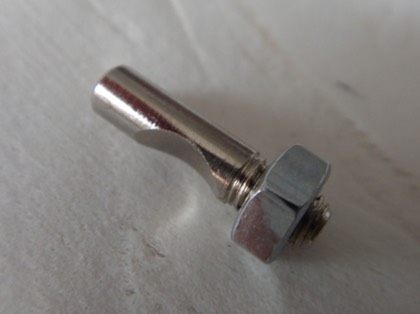

SECURING BOLT

Securing bolt, for fix ventury or R/C carburettors. .15 -.20 engines. Diameter 4 mm


ENYA VENTURY

Original ENYA nylon  venturis with neoprene joint. Very fine finish. Adaptable to either control line engine.

REF                 ENGINE                             VENTURY (mm)     SHANK (mm)

S5021           SS40 -50SS - 61CXS                    7                               13

S5022           SS40 -50SS - 61CXS                  7,5                             13

S5023           SS40 -50SS - 61CXS                   8                               13

S2521        SS25 - SS35 - 35 X - 40 XZS        6,5                            12

S2522        SS25 - SS35 - 35 X - 40 XZS         7                               12

S1521                      11CX - SS15                         6                                10

S1522                      11CX - SS15                        6,5                             10

S15521           15 -19 -20 cross flow                  6                              8,8

S15522          15 -19 -20 cross flow                 6,5                            8,8

S15523          15 -19 -20 cross flow                  7                               8,8
